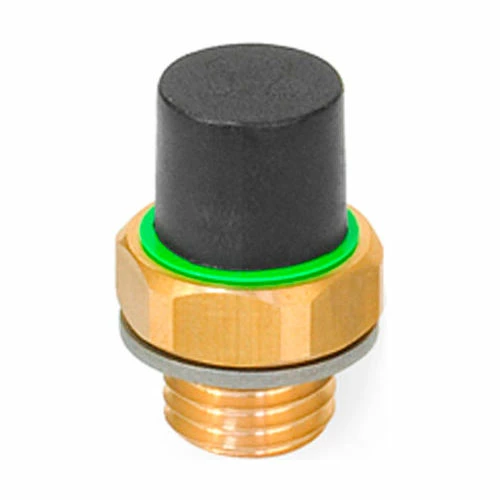

Brass Breather Valve with Plastic Cap - M12 x 1.5 Thread - J.W. Winco 883-M12X1.5-20-B-MS

Brass Breather Valve with Plastic Cap - M12 x 1.5 Thread - J.W. Winco 883-M12X1.5-20-B-MS - Image 2

Brass Breather Valve with Plastic Cap - M12 x 1.5 Thread - J.W. Winco 883-M12X1.5-20-B-MS - Image 3

Original price was: $11.25.Current price is: $7.88.

SKU: J.W. Winco WBB2248407 Categories: Lubrication Tools, Power Tools Tags: 1.8mm, 20 (Min.) - 80 (Max.) mbar, 301 Stainless Steel, 883-M12X1.5-20-B-MS, Brass, GN883, J.W. Winco, Tools & Instruments

Shop with confidence, enjoy free returns.
Secure Shopping Starts with Safe Payments
Where quality meets convenience.
Unbeatable quality, unbeatable prices.

Once the opening pressure given in the table is exceeded, GN 883 breather valves will vent into a container and so protect against excessive internal container pressure. They also feature very compact dimensions. The simple function principle (pressure spring / ball) ensures long and trouble-free use of the valve. The installation position is vertical to the top. Temperature resistant from -22° F to 212° F (-30° C to +100° C).

Nut Width	18.5mm
Air Passage	1.8mm
Ball Material	5210 Stainless Steel
Sealing Washer Material	DIN 7603 A, Soft Iron 1.0338
Breather Cap Material	Black Plastic
Manufacturers Part Number	883-M12X1.5-20-B-MS
Valve Body Material	Brass
Series	GN883
Spring Material	301 Stainless Steel
Across Flats	17mm
Opening Pressure	20 (Min.) – 80 (Max.) mbar
Nut Height	7mm
Sealing Ring Diameter	18mm
Thread	M12 x 1.5 in
Breather Cap Diameter	13mm
Body Height	19mm
Brand	J.W. Winco
